Emergency
Lighting Kits to Operate 12 Volt Tungsten Halogen Lamps in
the event of a Power Failure
These are available
in three modes:
Non-maintained
(NM) where the lamp is only illuminated when power fails
Remote Maintained
where a separate transformer is used, ideal for dimming installations
or where matching mains operation characteristics are critical.
Maintained (M) where
the unit is supplied with an integral transformer.
All units
incorporate a BSI Approved Charger Circuit to maximise
battery life and deep discharge battery protection, essential for Lead
Acid batteries. They are housed in a white epoxy coated sheet enclosure,
and are supplied with 5 year life sealed Lead Acid batteries.
Emergency
Lighting PCB's to Operate 12 Volt Tungsten Halogen Lamps in the Event of
a Power Failure
The
6V and 12V DC charger circuits incorporated into our tungsten lead acid remote
boxes are also available as separate printed circuits boards to give
users full flexibility with their choice of housings, batteries and
maintaining components. The facility of a 10A terminal block on each PCB
offers a greater degree of flexibility for installation within a remote
box/twinspot/luminaire.
Cat No.
Voltage
Battery
Type
Mode
Lamp
Range
No.
of Outlets
CB112
12V
VP Lead Acid
Maintained or
10-100W
2
CB106
6V
Non Maintained
Dimensions
in mm
A
B
C
D
Height
147
68
135
50
45
We
have introduced a range of products designed to exploit the
significant advantages that the new generation of high power
white light emitting diodes (LED's) offer.

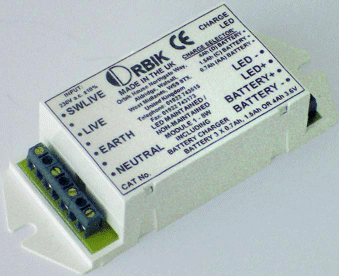

LED
COMBI MODULE NO. LCP31051/3
Combined
electronic parallel LED driver and emergency module, suitable for non-maintained
and maintained 3 hour operation
Supplies
into 6W of output at 4 Volts D.C.
Can be
used for Nickel Cadmium or Nickel Metal Hydride cells in a variety of
capacities dependant on the duration and load requirements
Easy
selection of charge outputs
Load
3 hour
battery
1W
3x0.7Ah cells
3W
3x1.5 Ah cells
5W
3x4 Ah cells
Maintained
output can be switched via a separate input terminal
Electronics
are suitable for a wide operating temperature range of -40°C to +50°C
(not including batteries)
Lightweight
and compact size polycarbonate case provides designers with a large degree
of flexibility. Dimensions: L130mm x W50mm x H30mm fixing centres 120mm
Short
circuit and battery polarity protected
All designed
to comply with EN55015 and relevant clauses of EN60924

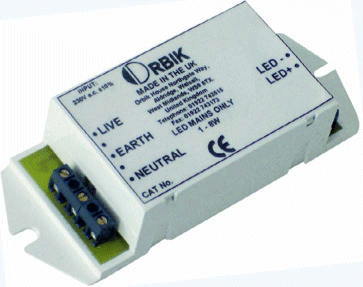

LED
POWER DRIVERS NO. LPD8
High output
parallel LED driver supplying loads up to 8 Watts at 4 Volts a (limiting
resistor should be included with the LED array)
Suitable
for 230V ±6% 50Hz (other supply voltages available to order)
Housed
in a polycarbonate case with dimension of L130mm x W50mm x H30mm fixing
centres at 120mm
Designed
to comply with EN55015
CHANGE-OVER
AND SUB-CIRCUIT MONITOR RELAY - DRM415AC
The
DRM415AC relay module is an enclosed change-over relay for use with
static inverter operated emergency lighting systems and is rated at
1250VA
The
DRM415AC can be used with either maintained or non-maintained luminaires,
powered from a static inverter and provides local sub circuit monitoring
to comply with the European Standard for centrally supplied emergency
systems, EN50171
For
non-maintained operation, the switched supply is also connected to
the DRM415AC. This allows the luminaire to be switched on and off as
though it were a normal mains luminaire. In the event of the local
un-switched supply failing the luminaire is operated from the static
inverter supply, regardless of whether the luminaire was being operated
from the normal mains supply at the time.
For
maintained operation, the switched supply is also connected to the
DRM415AC. This allows the luminaire to be switched on and off as though
it were a normal mains luminaire. In the event of the local un-switched
supply failing the luminaire is operated from the static inverter supply,
regardless of whether the luminaire was being operated from the normal
mains supply at the time.
A number
of different options based upon the DRM415AC are available
DRM415AC:
Static
inverter changeover relay rated at 1250VA
DRM415AC/NR:
As above,
with neon indicator showing that the static inverter supply is present
and healthy
DRM415AC/RB:
Static
inverter change over relay housed with in a sheet metal box for remote
mounting
DRM415AC/RB/NR:
As above
except with neon indicator showing that the static inverter supply is
present and healthy
DRM415AC/ADD
Addressable
remote box incorporating OEL305
All of
the above products can be factory fitted within
"free issued" luminaires contact our sales office for information

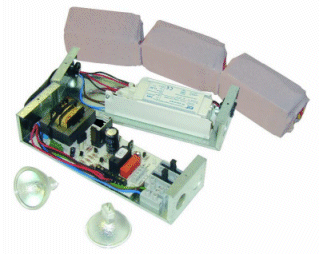

VRLA
LOW VOLTAGE LIGHTING TRAIN
To Compliment our
low voltage emergency lighting product range, we have introduced a
new product in the form of a train where each element is housed in
a separate galvanised metal box. This will operate up to 50W at 6 Volts
in emergency mode, giving a ballast lumen factor of 10% for a 50W and
6% for a 20W lamp. The compact size allows it to fit through a 85mm
cut-out and the standard non-maintained (or maintained via an external
transformer) is in two sections. If required we can supply a maintained
transformer in a third box. All units provide 3 hour duration in the
emergency mode from the valve regulated lead acid batteries.
Catalogue
Numbers
Dimensions
(millimetres)
Maintained:
R959/50/M3,
Non-Maintained:
R959/50/NM3
For shorter durations
specify the required time period e.g. .NM3 for
1 hour duration becomes NM1
Charger and
LV transformer enclosure:
Length 230mm x Width
74mm x Height 60mm
Valve regulated
lead acid battery enclosure:
Length 350mm x Width
74mm x Height 60mm
NICAD
LOW VOLTAGE LIGHTING TRAIN
Nickel
Cadimum Emergency Conversion Kits for 12 Volt Lamps up to 50 Watts
Our low voltage lighting
train enables 12 volt Tungsten Halogen lamps to operate in the event
of a power failure. The ability to feed the lighting train through ceiling
aperture cut-outs of 60mm ensures easy installation.
The lighting train
is available in Non-Maintained mode, where the lamp is only illuminated
when the power fails and also Maintained mode, which is supplied with
an integral transformer which operates the lamp in mains healthy and
in the event of a power failure.
The
low voltage lighting train features high quality, high temperature
Nickel Cadmium battery cells and a silicone coated woven glass fibre
sleeving ensuring the product is manufactured to BS/EN60924. The lighting
train also allows dimming of the Halogen lamps if required.
Dimensions
(millimetres)
Overall
Length 800mm (Lighting Train can fit through Ceiling Cut-Outs of 60mm
or above)
Cat No.
Mode
Lamp
Duration
Duration
Ballast
(1x20W)
(1x50W)
Lumen
Factor
R960/50/NM1
Non-Maintained
50/20W
12V
3
Hours
1
Hour
50W-10%/20W-6%
R906/50/M1
Maintained
(with transformer)
50/20W 12V
3
Hours
1
Hour
50W-10%/20W-6%
R961/50/M1
Maintained (without
transformer)
50/20W 12V
3 Hours
1 Hour
50W-10%/20W-6%
REMOTE
BOXES USING NICKEL CADMIUM BATTERIES

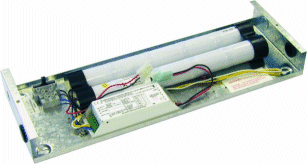

For
low wattage lamps from 10W to 50W, we also offer a nickel cadmium charger
module and battery pack. This is housed within a sturdy steel box -
430mm x 150mm x 50m.
The units can be used
in non-maintained or maintained mode (when used with a maintaining transformer).
Like all our products it is to BS/EN60925 and uses approved high temperature
nickel cadmium batteries.
Lamp
Duration
Module
Battery
Remote Box
pre-wired with
(Hours)
Pack
Module & Battery
Pack
10 Watt
3
20 Watt
2
B179/10x4
2x10 Watt
2
M841/50
or
R842/50
50 Watt
45 minutes
B178/104
Dimensions
(millimetres)
Module
(Cat. No. M841/50): Length 212mm x Width 43mm x Height 35mm
(Fixing Centres 202mm)
Remote
Box (Cat. No. R842/50): Length 430mm x Width 150mm x Height
50mm
