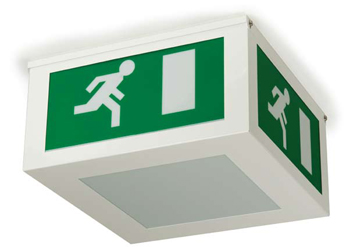

Quarto is an impressively robust 4 sided white emergency exit sign manufactured from high
quality sheet steel which is suitable for either surface mounting or for large open tall
buildings such as railway stations and airports Quatro can be suspended
using rod suspension kits available (750mm and 1200mm
white rod lengths as standard).
Optional blanking plates
are available for Quarto for
situations when less than four
legends are required
Its energy saving compact
fluorescent lamp ensures each
of the legends and downlight
panel receives an impressive
even illumination creating
a reliable and highly visible
exit sign.
Available as a mains or 3
hour non-maintained and
maintained emergency
luminaires, Quarto is also
available as a slave unit
operating from a Central
battery or Static Inverter
System.
Self Test and Intelligent
Addressable Emergency versions are
also available as options for this flexible
exit sign enabling it to be confidently specified
for the largest of projects.
Mains Luminaires
Cat
No.
Mode/Lamp
Lumens*
Kg
QU16
Mains 16W
-
6.40kg
Emergency Luminaires
Cat
No.
Mode/Lamp
Lumens*
Kg
QU16/NM3
16W NM3
200
7.00kg
QU16/M3
16W M3
200
7.30kg
Slave Luminaires
Cat
No.
Mode/Lamp
Lumens*
Kg
QU16/#/D
Slave 16W
400
6.40kg
IP20
Dimensions: Length 420mm x Depth 420mm x Width 230mm
