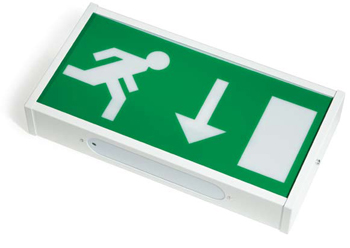

The Pico range of low-profile single sided fluorescent
exit signs are manufactured from sheet steel and
are available in high quality white, brass or chrome
options.
This competitively priced high quality exit
luminaire is available as a mains option, with
3 hour non-maintained and maintained
emergency versions.
Pico luminaires are only 65mm deep
and are supplied as standard with
a rear center BESA entry, keyhole
mounting slots and an opal
threshold downlight panel to
illuminate the area below
the sign.
Pico luminaires are
supplied with removable
end-caps, which enable the
legend to be removed via either
end of the luminaire allowing the Pico
to be suitable for cornered installations.
Mains Luminaires
Cat
No.
Mode/Lamp
Kg
PIC8
8W 300mm Single Sided
2.50kg
Emergency Luminaires
Cat
No.
Mode/Lamp
Lumens
Kg
PIC8/NM3
NM3 8W 300mm Single Sided
80E, 120S
2.60kg
PIC8/M3
M3 8w 300mm Single Sided
80E, 120S
2.90kg
Slave Luminaires
Cat
No.
Mode/Lamp
Lumens
Kg
PIC8/#/D
8W Slave Exit Sign Single Sided
275
2.50kg
IP20
Dimensions: Length 385mm x Width 200mm x Depth 65mm
