MULTIA |
| A
stylish range of compact fluorescent downlights |
| |
|
Multia is a comprehensive
range of compact fluorescent downlighters offering a variety of options
for almost every application.
Available from
18 to 42 Watts in both single and twin lamp versions, Multia is supplied
with a white bezel as standard with inter-changeable brass or chrome
options also available.
Alternative options
include two types of attractive floating glass, an IP44 opal polycarbonate
cover, cross-blade louvre, anti-glare rings and a range of polycarbonate
emergency drop legends.
Emergency versions
(mounted in a remote box) for all lamp options are available using Perferm™ control
gear, specifically designed for use with low Mercury compact fluorescent
lamps and high temperature Nickel Cadmium cells.
|
Multia
with white bezel |
|
|
|
Mains
Luminaires |
| |
Cat
No. |
Mode/Lamp |
Lumens* |
Kg |
|
|
 |
| MU18 |
18W Mains Downlighter |
- |
2.42 |
|
| MU218 |
2x18W
Mains Downlighter |
- |
3.25 |
|
| MU26 |
26W Mains
Downlighter |
- |
2.42 |
|
| MU226 |
2x26W Mains
Downlighter |
- |
3.25 |
|
| MU32 |
32W HF
Mains Downlighter |
- |
2.28 |
|
| MU232 |
2x32W HF
Mains Downlighter |
- |
2.68 |
|
| MU42 |
42W HF
Mains Downlighter |
- |
2.36 |
|
| MU242 |
2x42W HF
Mains Downlighter |
- |
2.97 |
| |
| Emergency
Luminaires (Incorporating Perferm™ Technology) |
| Cat No. |
Mode/Lamp |
Lumens* |
Kg |
|
| MU18/M3 |
18W M3 Downlighter |
276 |
2.42 |
|
| MU218/M3 |
2x18W
M3 Downlighter |
276 |
3.25 |
|
| MU26/M3 |
26W M3 Downlighter |
324 |
2.42 |
|
MU226/M3 |
2x26
M3 Downlighter |
324 |
3.25 |
|
MU32/M3 |
32W
M3 HF Downlighter |
480 |
2.28 |
|
MU232/M3 |
2x32W
M3 HF Downlighter |
480 |
2.68 |
|
MU42/M3 |
42W
M3 HF Downlighter |
416 |
2.36 |
|
MU242/M3 |
2x42W
M3 HF Downlighter |
416 |
2.97 |
| |
*
Emergency Lumens All Luminaires available have slave options |
| #
Specify 24, 50, 110 or 230 Volts AC/DC System Voltage |
*
For other durations, specify the required time period e.g. /NM3 but for
1 hour duration becomes
/NM1 |
| |
| |
| |

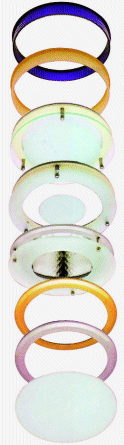

Multia
bezel options |
Options
Suffix |
|
 /BR
- Brass Trim /CH
- Chrome Trim /OPC
- IP44 Opal Polycarbonate Cover |
| |
/AD
- Intelligent Addressable Luminaire |
| |
/DG1
- Clear Outer Ring With Frosted Centre Disc Floating Glass |
|
/DG2
- Frosted Outer Ring With Frosted Centre Disc Floating Glass |
| /CB26
- Cross Blade Louvre For 18W & 26W Luminaires |
| /CB42
- Cross Blade Louvre For 32W & 42W Luminaires |
| /AGF
- Frosted Anti-Glare Ring |
| /AGB
- Blue Anti-Glare Ring |
| /L
+ - Drop Legend (Replace + with required Legend
Panel) |
| /HF
- High Frequency Ballast /HPF
- Power Factor Corrected |
| /ES
- Electronic start /ST
- Digital Self-test |
| |
| |
Multia
with drop legend |
IP20/44 |
 |
|
|
| |
| |
|
| |
Dimensions |
| |
18 & 26W
Versions: Ø 226mm
x 198mm (Minimum Ceiling Void) |
| |
32& 42W
Versions: Ø 226mm
x 245mm (Minimum Ceiling Void) |
| |
Cut-Out
(All Versions): Ø 208mm |
