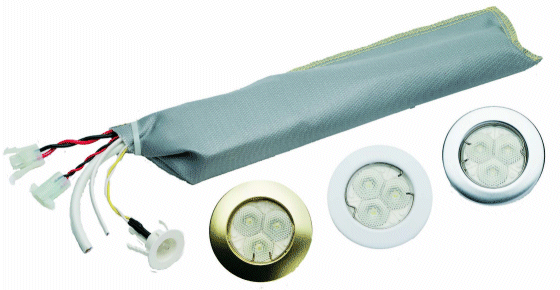

Dart is a discreet
mains or emergency downlight, designed to blend in with GU10 and
GZ 10 mains and low voltage luminaires.
Using the latest
high output LED technology, it is aesthetically attractive, versatile
and is virtually maintenance free with a lamp life of approximately
90,000 hours.
The Dart packs
feature high quality, high temperature Nickel Cadmium battery cells
and a silicone coated woven glass fibre sleeving ensuring the product
is manufactured to BS/EN60924.
Dart is available
in white as standard but can also be supplied in brass and chrome
finishes.
Luminaires
Cat
No.
Mode/Lamp
Lumens*
Kg
DAR31W/WH
White 3x1W Luminaire
-
0.50
DAR31W/BR
Brass
3x1W Luminaire
-
0.50
DAR31W/CH
Chrome
3x1W Luminaire
-
0.50
Mains
& Emergency Packs
Cat No.
Mode/Lamp
Lumens*
Kg
DAR/M3
M3 Emergency Pack
-
1.00
DAR/MAINS
Mains Pack
-
1.00
360H
* Mains
and emergency packs will operate up to two LED downlights
* For
other durations, specify the required time period e.g. /NM3 but
for 1 hour
duration
becomes /NM1
IP20
Dimensions Ø 80mm
x 40mm Depth
Dimensions
Mains and Emergency Packs Ø 75mm
x 190mm
