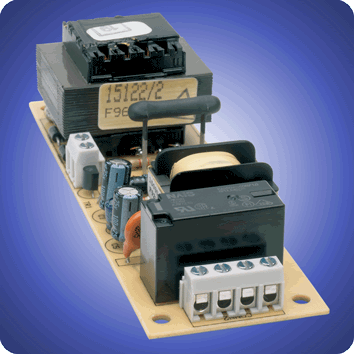

PCB ranges are
generally for self contained luminaires where price is a significant
factor. As with most of our products the printed circuit board range are
approved to the British/European Standard EN60924/60925. PCB Suffix/T have
fold over LED/ Suffix/TL have an LED terminal block.
All of the above
products are for 3 hour duration, for other durations. specify the
required time period e.g. P3 for1 hour duration becomes P1
Printed Circuit Boards Dimension (millimetres)
Printed Circuit Boards
A
B
C
D
Height
Non-Maintained
123
40
114
31
30
Maintained with C/O
Relay
123
40
114
31
30
Non-Maintained
Maintained
No.
of Cells
4W
150mm
6W
225mm
7W
TC-S 4 Pin
8W
300mm
9W
TC-S 4 Pin
10W
TC-D 4 Pin
11W
TC-S 4 Pin
13W
TC-D 4 Pin
16W
2D 4 Pin
18W
TC-D 4 Pin
28W
2D 4 Pin
38W
2D 4 Pin
PCB's for
external
gear circuits
P400/3/TL
P404/3/TL*
2x4AH
45
22
30
26
P226/3/TL
P232/3/TL*
3x4AH
45
33
33
37
28
27
24
30
20
19
PERFERM
P1028/3/TL
3x4AH
20
12
PERFERM
P1038/3/TL
5x4AH
13
* Only suitable for
Switchstart circuits.
PCB
suffix/T have a fold over LED. Suffix/TL have an LED terminal block. All
PCBs supplied with a green LED.
All of
the above products are for a three hour duration, for other durations
specify the required time period e.g. for 1 hour duration change part
number from /3 to /1.
